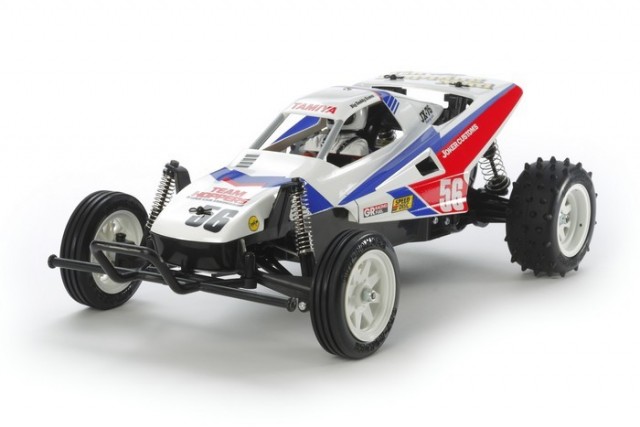

The Grasshopper II er en av Tamiys mest ikoniske RC-byggesett fra slutten av 1980-tallet. Denne nyutgivelse (2017) inneholder en rekke oppdateringer, samtidig som den holder seg til den opprinnelige modellen. Den strømlinjeformede konstruksjonsprosessen gjør dette settet perfekt for mindre erfarne brukere og RC-veteraner. Modellen leveres med en kraftig børstemotor.
Behøves utenom som ikke er inkludert:
2-kanals fjernkontroll og mottaker
7.2V Ni-Mh batteripakke og lader
Styreservo
Fartsregulator
Lakk/maling til bodyen
Spesifikasjoner:
RC byggesett
Chassis type: Vintage
Skala: 1/10
Terreng: Off-Road
Drift: 2WD bakhjulsdrift
Batteripakke: 7,2V Ni-Mh med Tamiya-kontakt (ikke inkludert)
Motor: Børstemotor (inkludert)
Body: Hvit ABS-plast (lakk/maling ikke inkludert)
Ytterligere spesifiaksjoner på engelsk helt nederst.
Lakk/maling anbefalt av Tamiya:
TS-26 Pure White
XF-1 Flat Black
XF-15 Flat Flesh
Info fra Tamiya:
| Type | Detail |
|---|
| Scale |
1/10 |
| Construction type |
Assembly kit |
| Terrain use |
Off-Road |
| Drive-train |
2WD |
| Drive type |
Gearbox |
| Drive line |
Solid axle |
| Differential type |
Gear |
| Suspension |
Independent front/solid axle rear |
| Steering mechanism |
Direct servo |
| Shock damper |
Friction damper |
| Shock damper material |
Plastic |
| Tire type |
Rubber |
| Tire tread |
Grooved front/pin spike rear |
| Body material |
ABS Plastic |
| Chassis material |
Plastic |
| Electronic Speed Control (ESC) |
Included |
| ESC model |
Not included |
| LED Light buckets |
No |
| LED lights |
No |
| Motor |
380-brushed type |
| Bearings |
Plastic bushing |
| Adjustable camber |
Fixed |
| Adjustable toe angles |
Front only |
| Adjustable ground clearance |
Fixed |
| Adjustable gear ratio |
Fixed |
| Adjustable wheelbase |
Fixed |
| Adjustable track width |
Fixed |
| Adjustable shock angle |
Fixed |
| Special feature 1 |
Length: 400mm, width: 221mm, height: 139mm |
| Special feature 2 |
The Grasshopper II body is molded in durable polystyrene resin, and has a driver figure for attachment. |
| Special feature 3 |

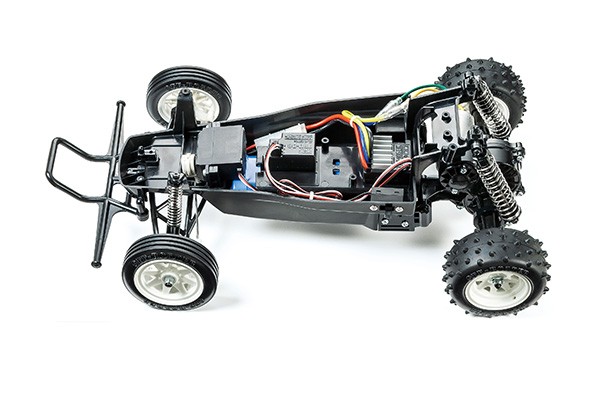

Features a rugged ABS resin bathtub chassis. |
| Special feature 4 |
Front swing axle and rear rolling rigid suspension setups are actuated by coil-sprung friction dampers. |
| Special feature 5 |
Fully enclosed rear gearbox contains a differential gear to aid smooth cornering. |
| Special feature 6 |
Front ribbed tires give great straight-ahead grip, and rear spike tires provide powerful drive. They are matched with 8-spoke one-piece lightweight wheels. |
| Special feature 7 |
Compatible with tune-up parts such as standard Type 540 motors (requires nine 1150 ball bearings & one 850 ball bearing) and CVA mini oil dampers. |
| |
|
| Requires A |
2-channel radio gear |
| Requires B |
7.2 battery & charger |
| Requires C |
TS plastic model paint |
