RC-byggesett av Audi 90 Quattro Racing. Tamiya har gjenskapt denne modellen på det ideelle TT-02 chassiset som passer godt for nye og erfarne RC-byggere. TT-02 chassiset gjør det enkelt for nye RC-byggere å montere og lære. I tillegg til at TT-02 er en ideell plattform å starte på, kan RC-byggere utvide sitt potensial ved å legge til mange oppgraderingsdeler som er tilgjengelige for å øke bilens hastighet og ytelse. Modellen leveres med en fartsregulator fra Hobbywing og en kraftig børstemotor.
Behøves utenom som ikke er inkludert:
2-kanals fjernkontroll og mottaker
7.2V Ni-Mh batteripakke og lader
Styreservo
Hurtiglim
Lakk/maling til karosseriet
Spesifikasjoner:
RC byggesett
Chassis type: TT-02
Skala: 1/10
Lengde: 44,6 cm
Bredde: 19,2 cm
Høyde: 12,7 cm
Terreng: On-road
Drift: 4WD firehjulsdrift
Fartsregulator fra Hobbywing (inkludert)
Batteripakke: 7,2V Ni-Mh med Tamiya-kontakt (ikke inkludert)
Motor: 540 Børstemotor (inkludert)
Karosseri: Gjennomsiktig polykarbonat (lakk/maling ikke inkludert)
Lakk/maling anbefalt av Tamiya:
PS-1 White
PS-31 Smoke
TS-13 Clear
TS-29 Semi Gloss Black
Informasjon fra Tamiya:

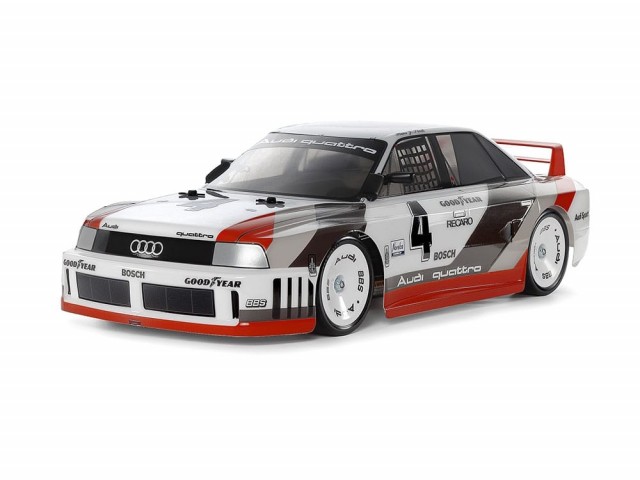

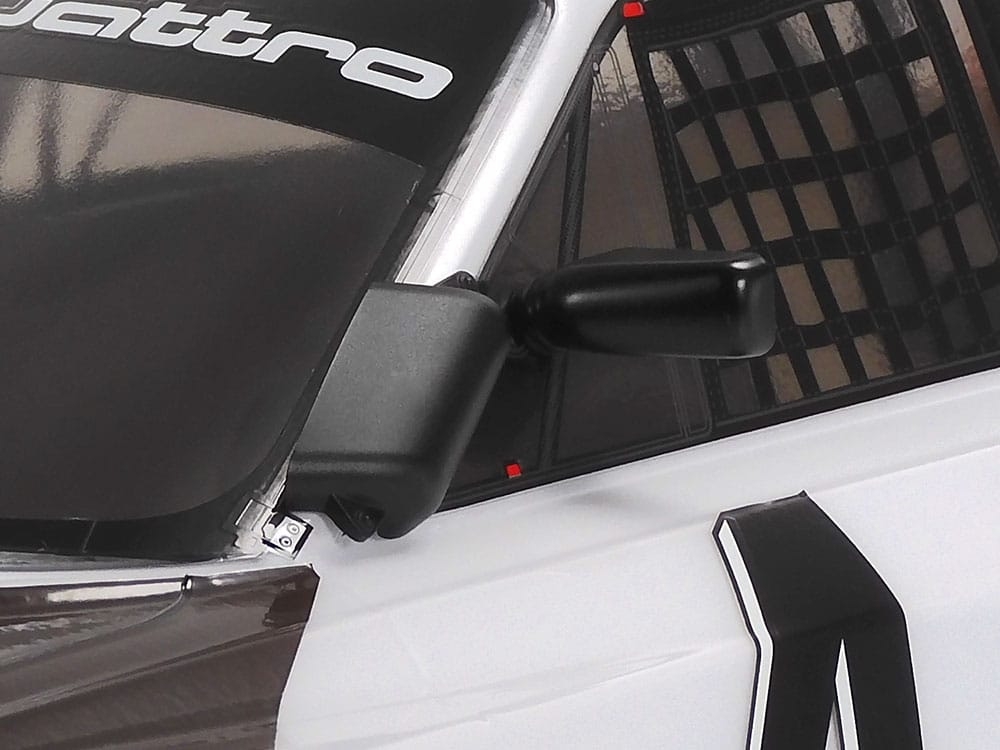

This R/C model assembly kit recreates the Audi 90 quattro Racing, a car which flourished at American races in 1989. Wider than the road car, its muscular form is recreated by a polycarbonate body, with stickers included to recreate sponsor logos, red/silver/black livery sections and more. Separately molded parts for the A pillar ducts, side mirrors and rear wing give an extra level of detail. The shaft-driven 4WD TT-02 chassis employs a 251mm wheelbase, and dedicated flat dish wheels have a +4mm offset to go with the wide body.
TT-02: Adaptable, balanced shaft driven 4WD

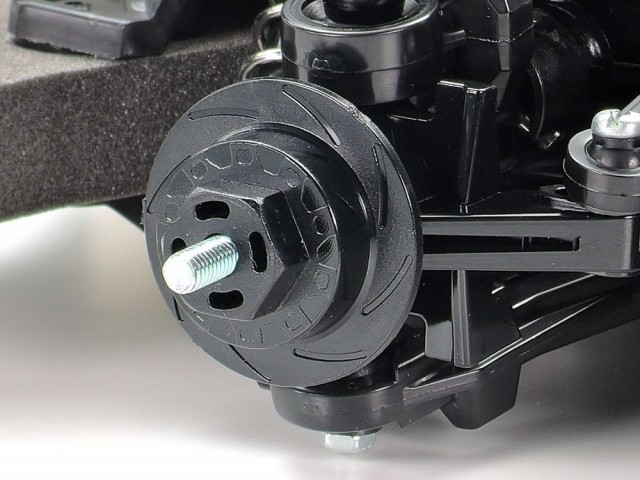

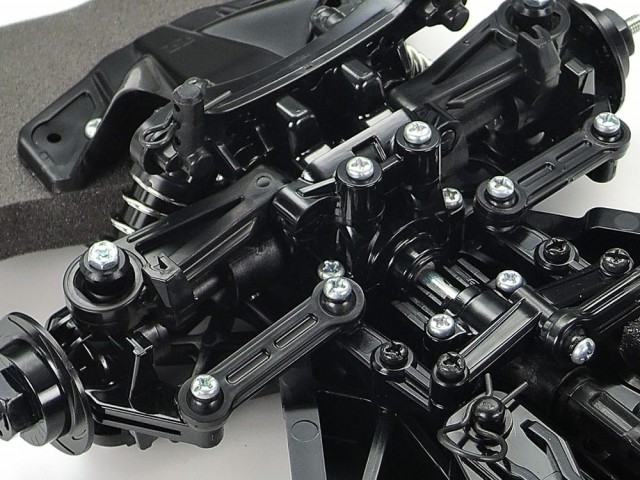

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. White dish wheels use semi-pneumatic slick tires.
Specifications
★Length: 446mm, width: 192mm, height: 127mm
★Wheelbase: 251mm
★Tire width/diameter: 26/66mm (front & rear)
★Bathtub-type frame
★Shaft-driven 4WD
★Front/rear 4-bevel plastic differentials
★3-piece steering tie-rod
★4-wheel double wishbone suspension
★Front/rear friction dampers
★Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
★Type 540 motor
★ESC included for export
Separately Required Items
★2-channel R/C system ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
